DryerJack Extra Clearance
Mill Finish

SKU DJK486
$57.85
38 Reviews

Details

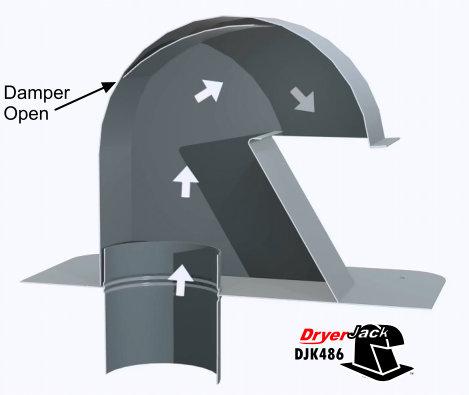

The DryerJack Model DJK486 roof vent termination is specifically designed for dryer venting. Its precision-tuned design creates no resistance, giving a level of performance previously unavailable in the industry. This vent features an industry-first curved damper that deters nesting birds and critters. Removing a total of four rivets makes the front panel removable to provide access for cleaning and maintenance.

The sturdy 26-gauge Galvalume® steel housing is built to last. This extra clearance vent is best suited for medium snowfall regions, sloped roofs with flat profile cement tiles or other composite shingles. Does not provide adequate clearance in height for "S" or Barrel Tile roofs.

Product Features:

  • Virtually Impenetrable to Birds and Rodents
  • Industry-first curved damper profile
  • Radius corners to minimize injury
  • Creates no back pressure
  • Complies With IMC 504.4 & IRC 1502.3
  • Will meet the 2017 ICC code requiring that the passageway not diminish in size
  • Built-in 4" Silicone sealed Water-tight Collar
  • Duct Cleaning Access Door
  • Available in Mill Finish as well as powder coated white, black and brown
  • Made in the USA



Specs:

  • 14x12 Inch Flange
  • 6" Wide x 8" Body
  • Part Number DJK486
  • 26 gauge Galvalume® sheet steel
  • Hinged, light gauge galvanized steel bird-proof damper
  • 4" round collar installed in and silicone sealed in bottom plate
  • Carton is 14x14x12 and 4.5 pounds



Additional Description:

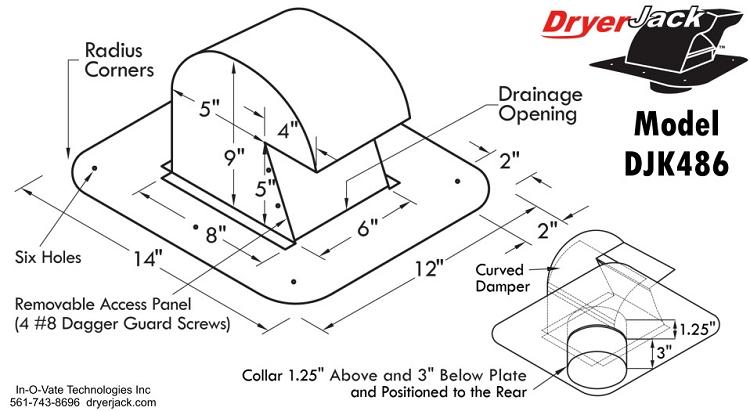

This medium-sized Galvalume® roof cap has a plate (flange) size of 12” wide x 14” and the structure is 6” wide x 8” and about 9” high. It has a 4.12 inch diameter collar that accepts typical residential dryer exhaust conduit. Per building codes, there is no screen in this vent as it is exclusively designed for clothes dryers. Unlike other roof vents, this vent features a unique lightweight damper that is curved, increasing the efficiency dramatically. The final opening is 65% larger than the round pipe portion. By far, this is the most efficient roof vent on the market.

For flat roof installs, we recommend a installing our DJK486U (curb style) over a raised curb.

The collar penetrates the plate about 1.25 inches and is sealed to the plate with a silicone bead. It will work on sloped roofs from 2/12 up to 12/12.

Note: Not recommended for use with a high-profile roof tiles like "S", Spanish S as there is only a distance of 5 inches between the opening and the bottom plate. Bird nest building within would be doubtful due to the slope and shape of the damper. This vent is proudly made in the USA.

Galvalume: A patented alloy of barrier-resistant aluminum and corrosion-fighting zinc gives Galvalume its superior corrosion resistance. Most Galvalume substrates feature an alloy that is 55% aluminum, 43.5% zinc and 1.5% silicon. Tests have proven this alloy superior to the zinc-only coating used in regular Galvanized sheeting. Additionally, it is Acrylic Coated, coating designation AZ-55.

Complies with 2017 code M1502.3.1 (Exhaust termination passageway size).

Professional installation is recommended.

DIY'ers, we recommend Polyurethane Roof and Flashing Sealant.

Not recommended for for bathroom exhaust fans with less than 70 cfm output.
